TY20-RF
External TPMS System
What is an external TPMS?
An external TPMS, or Tire Pressure Monitoring System, is a device that monitors tire pressure from the outside of the tire. External TPMS sensors are easier to install and can monitor tire pressure for a greater number of wheels, making them suitable for various applications, including larger vehicles.
-
Yes, our external TPMS system is versatile and can be used on various vehicle types, including recreational vehicles (RVs), buses, trailers, and trucks, making it suitable for a wide range of applications.
-
Our external TPMS system is capable of connecting to a maximum of 22 wheels, making it an ideal choice for vehicles with multiple wheels, such as trucks, buses, and trailers.
-
The number of sensors required depends on your vehicle configuration. Typically, each wheel should have its sensor for accurate monitoring. However, configurations with dual wheels on one axle may share a single sensor, reducing the total number needed.
-
The system's sensors transmit real-time data to a monitoring unit inside the vehicle. This unit displays the tire pressure for each wheel, and any deviations from recommended pressure levels trigger warnings or alerts.
22-Wheel Compatible Solutions
Due to internal interference variations in each vehicle, there's no fixed standard, but typically, for vehicles with 6 wheels or more, we recommend customers install a REPEATER. Our REPEATER system can support a maximum of 22 wheels on a single vehicle.
22
Maximum
wheels
The Complete System

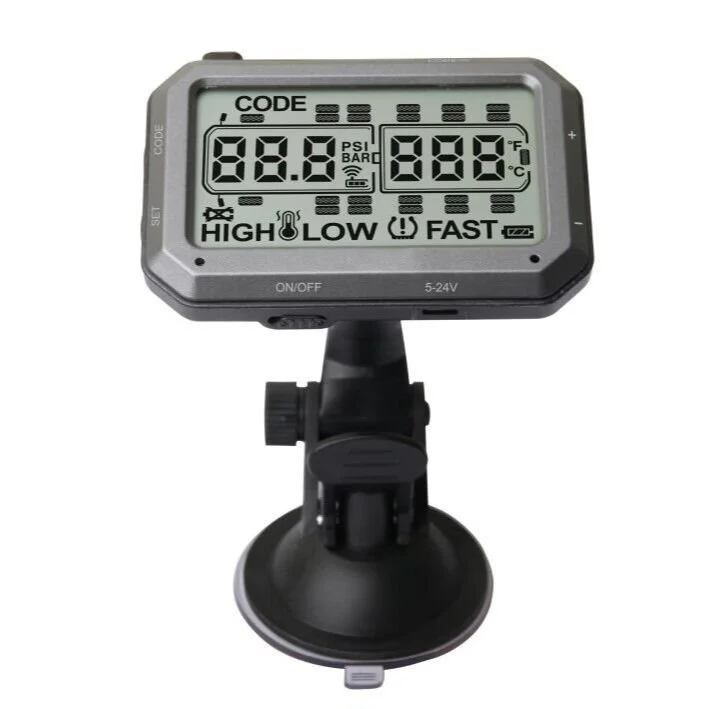

Monitor
| TYZELL MODEL | TYM20-RF |
|---|---|
| Pressure Range | 0-188 PSI (O~ 13 BAR) |
| Working Temperature | -40°F~ +176°F |
| Storage Temperature | -40°F~ +185°F |
| Frequency | 433.92MHz |
| Input Voltage | 5-24V |
| Dimensions (LxWxH) | 103×76.8×24.4mm |
| Item Weight | 116g |

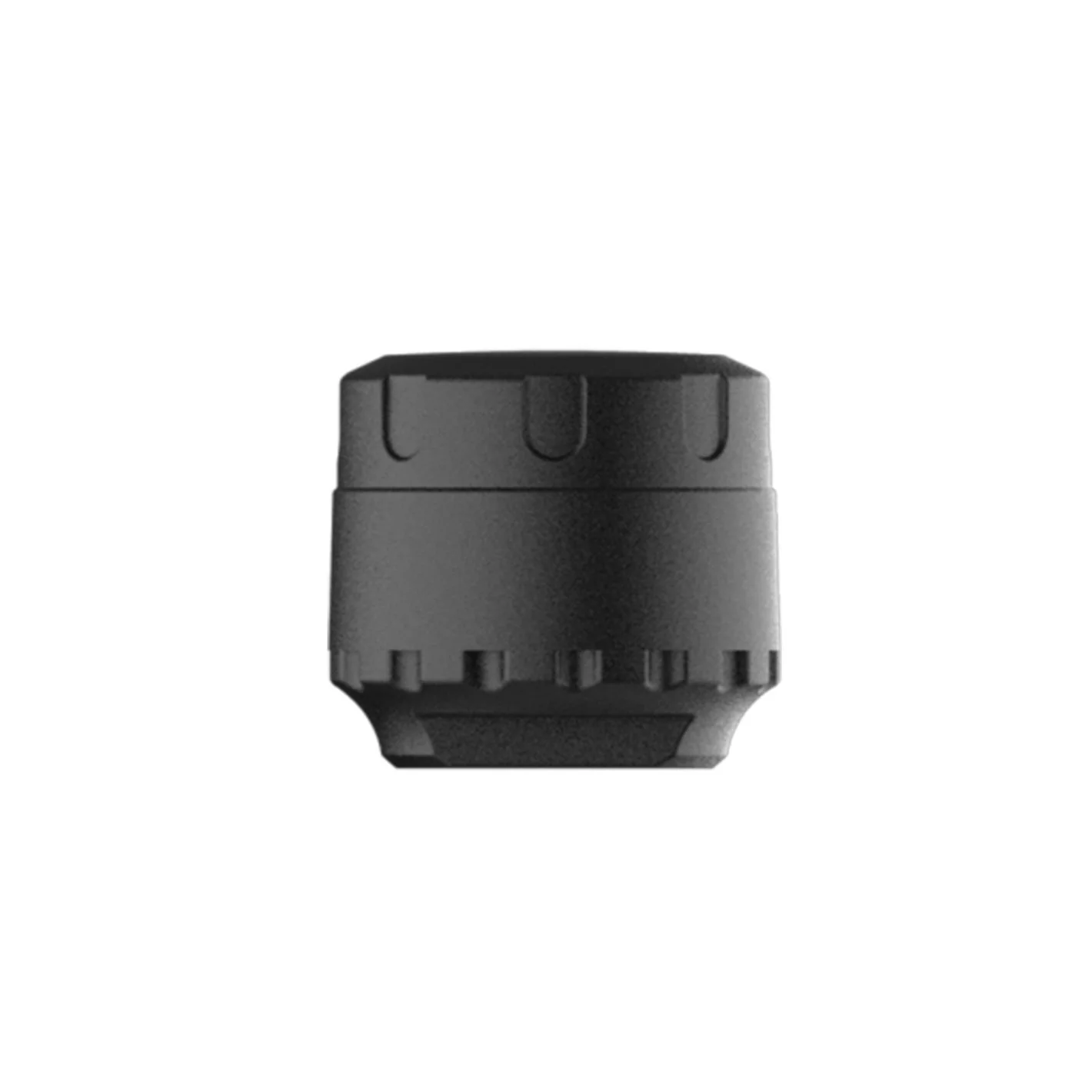

External TPMS
| TYZELL MODEL | TY20-RF |
|---|---|
| Pressure Range | 0~13BAR (0~188PSI) |
| Working Temperature | -40°F~ +176°F |
| Storage Temperature | -40°C~ +185°F |
| Frequency | 433.92MHz |
| Transmission Power | <100Bm |
| Pressure Accuracy | 10.1 bar(#1.5 psi) |
| Temperature Accuracy | ‡3°C |
| Dimensions (LxW) | 25×23mm |
| Item Weight | 18g |

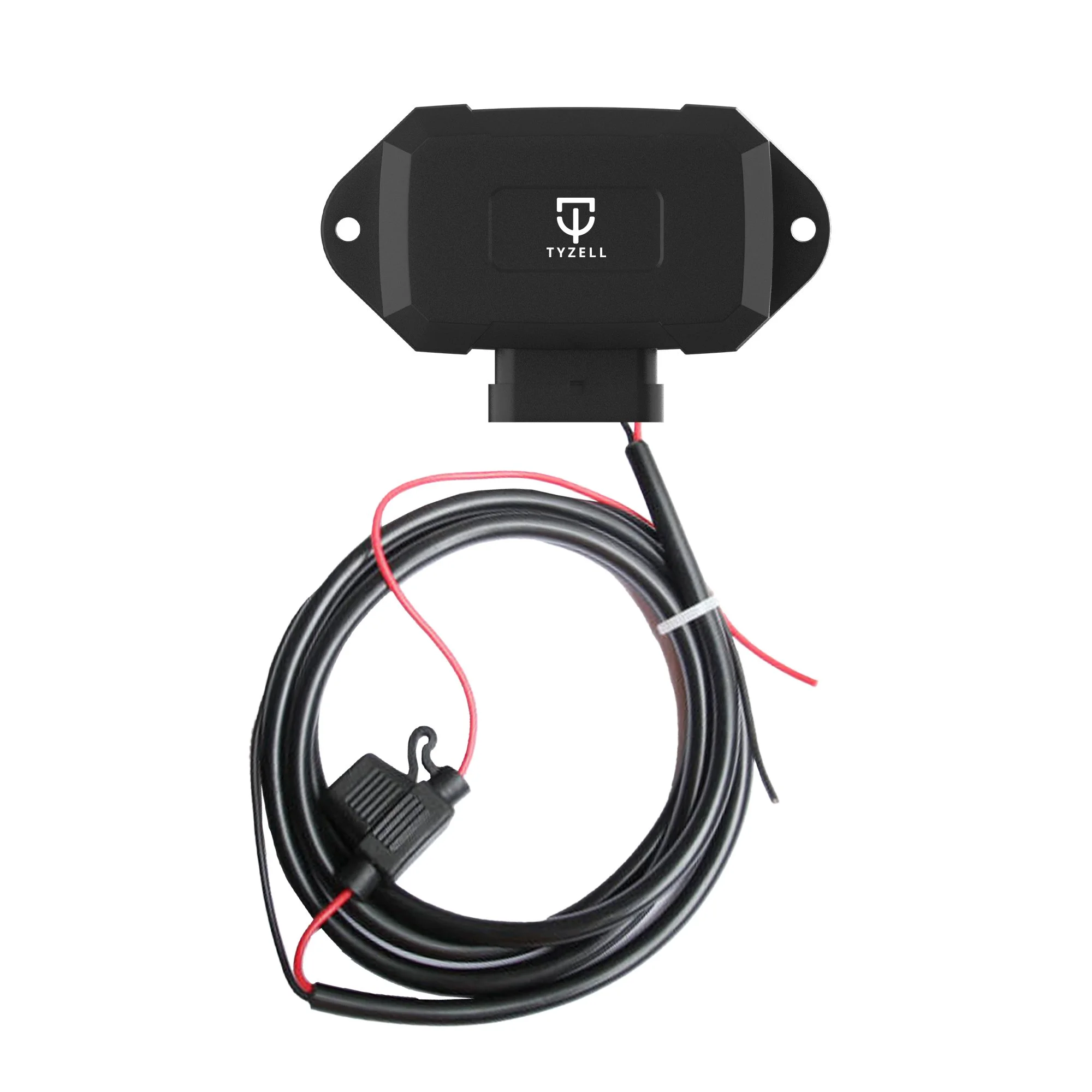

Repeater
| TYZELL MODEL | TY20-Ext |
|---|---|
| Working Temperature | -4°F~ +176°F |
| Storage Temperature | -22°C- +185°F |
| Frequency | 433.92MHZ |
| Working Voltage | 12-24V |
| Transmission Power | <18dBm |
| Dimensions (LxWxH) | 127×80×25mm |
| Item Weight | 147g |
