TPMS
What is TPMS?
TPMS stands for Tire Pressure Monitoring System. It is an automotive safety feature designed to monitor and provide information about the air pressure in a vehicle's tires.
-
Dual frequency means the system operates on two different radio frequencies, allowing for more reliable and accurate tire pressure readings. It helps avoid interference and increases the system's efficiency.
-
Yes, our TPMS systems are designed to be user-friendly. They come with detailed instructions and typically involve simple installation processes. Once set up, the system continuously monitors your tire pressure and provides real-time data to keep you informed.
-
Yes, TPMS with dual frequency is designed to be compatible with global standards, making it reliable for international travel. It ensures you have accurate tire pressure readings regardless of your location.
-
If your TPMS alerts you to a tire pressure issue, follow the recommended steps outlined in your user manual, which may include checking and adjusting tire pressure or inspecting for potential damage. Addressing these alerts promptly is essential for safety
Compatible with 98+% of Worldwide Vehicles
TY1-DF is compatible with nearly all vehicle makes and models globally. With extensive coverage, you can trust that our system will work effectively on your vehicle, whether it's a car, truck, SUV, or any other type of vehicle.
98+%

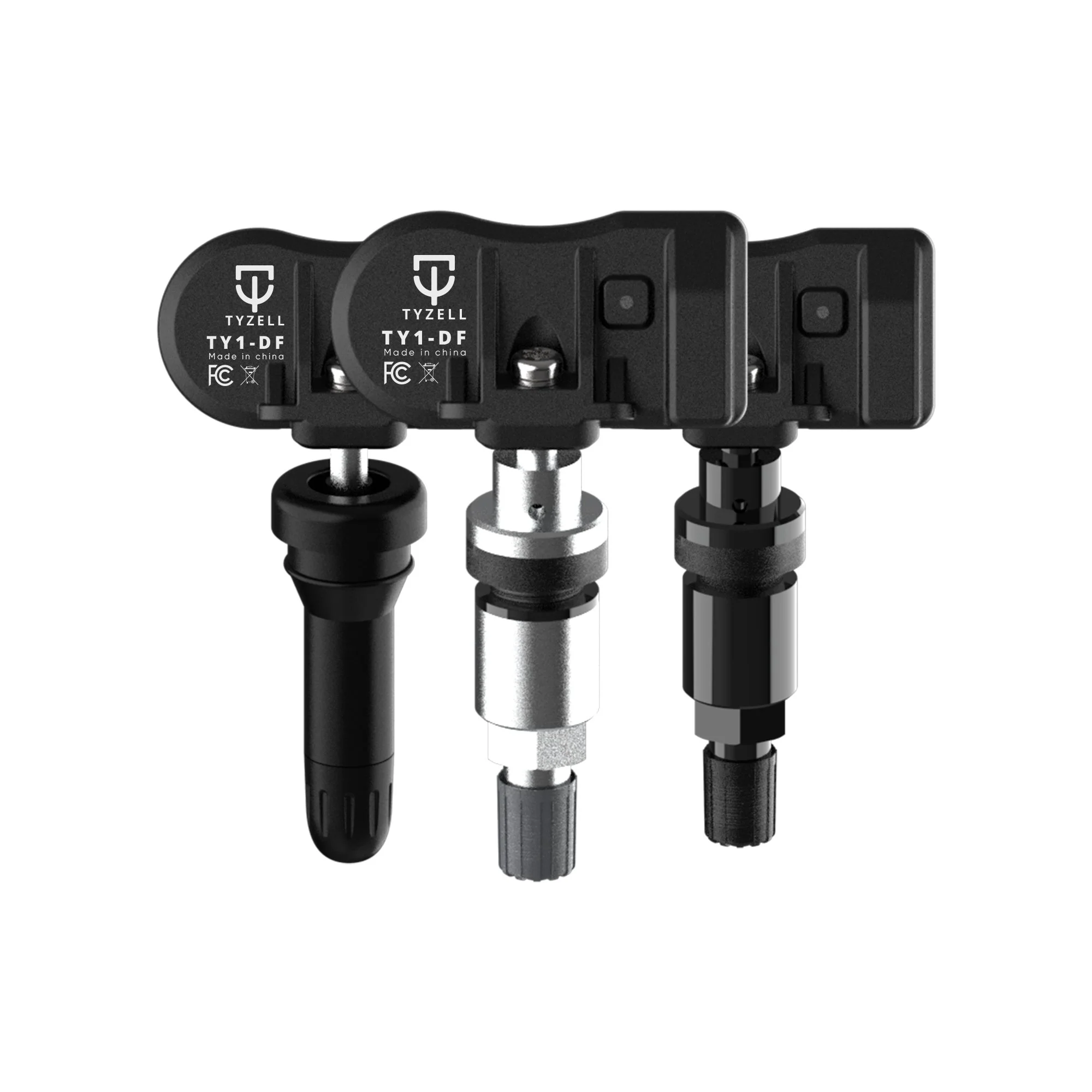

Three Different Styles

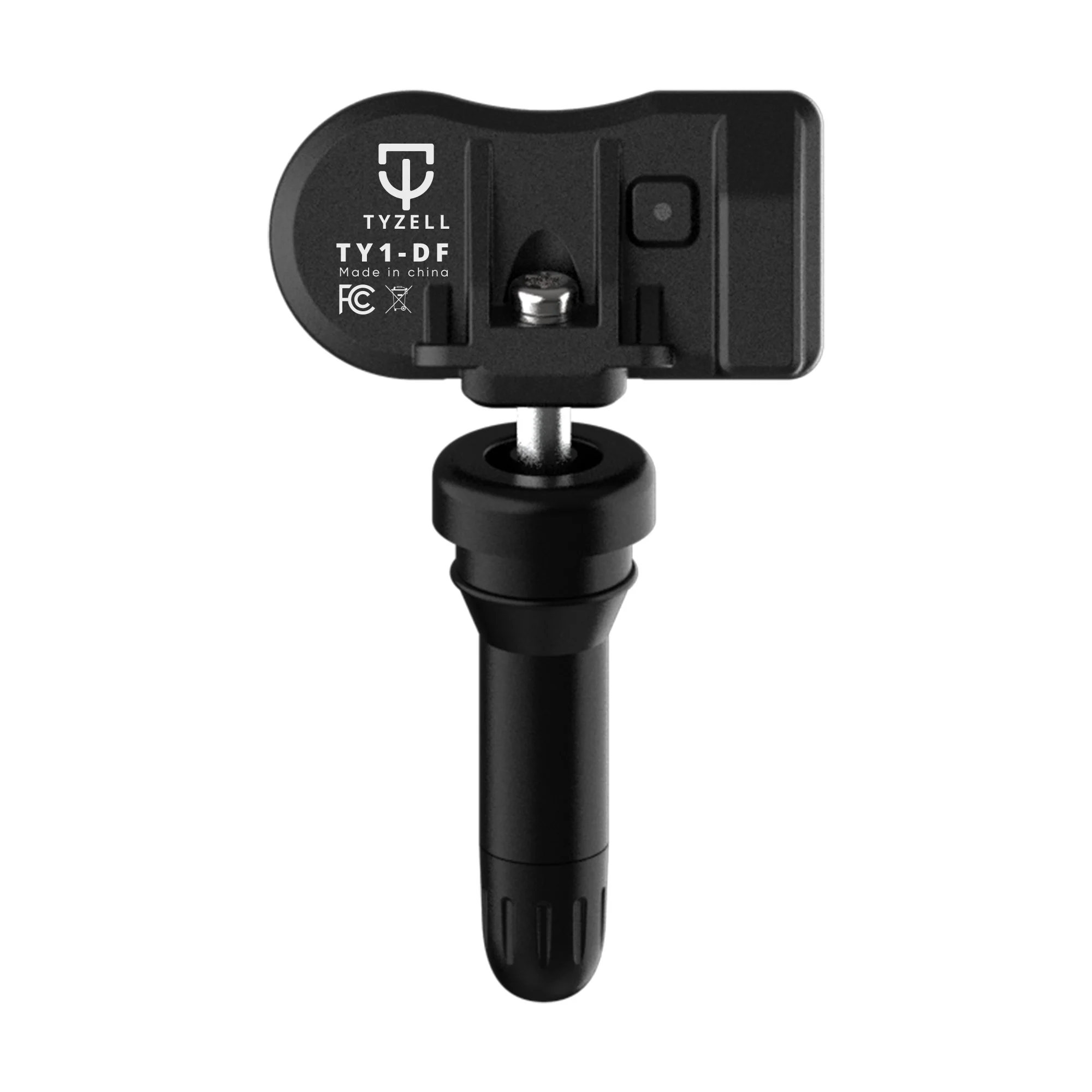

Rubber

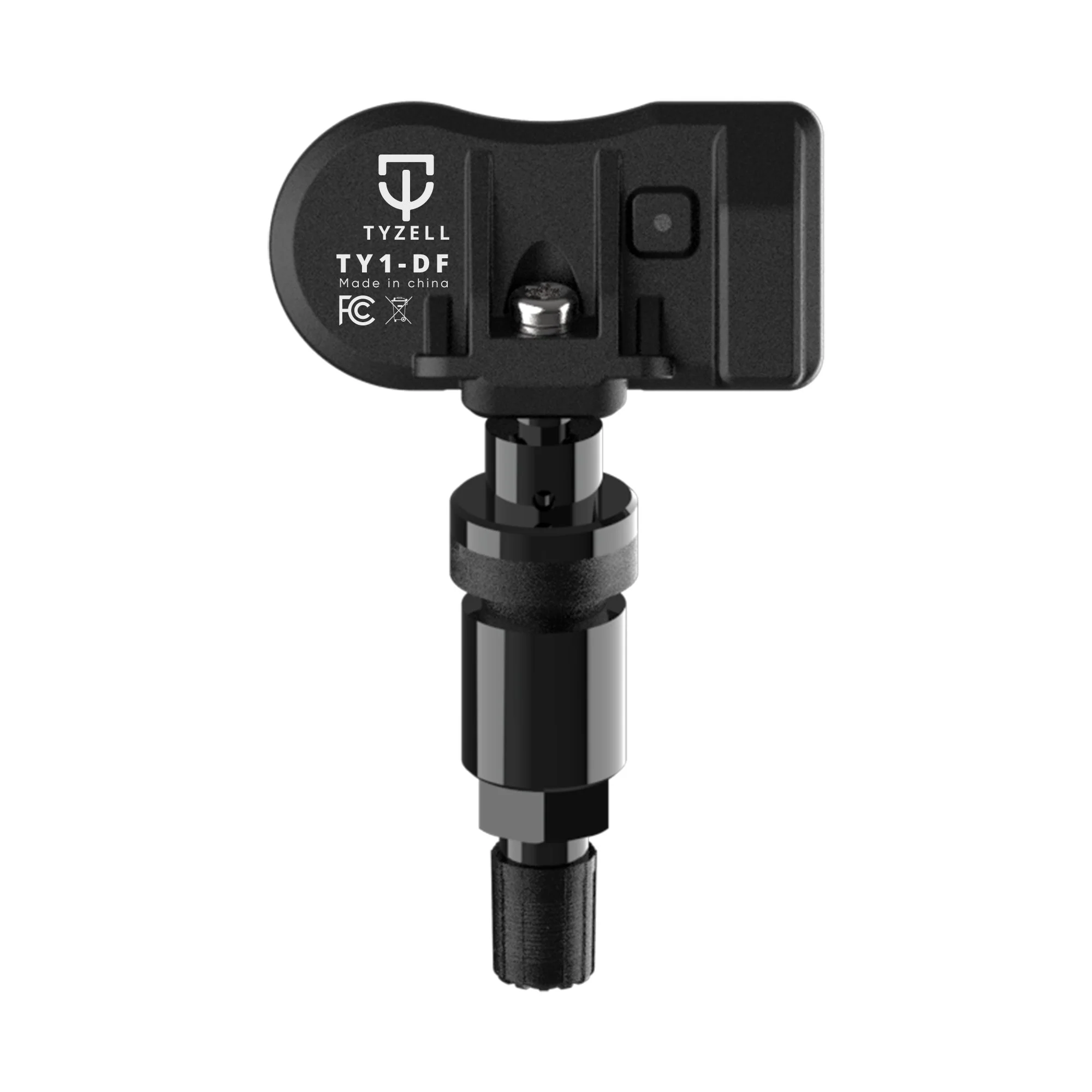

Metal
Metal BK
| TY1-DF | With Rubber Valve | With Metal Valve |
|---|---|---|
| Pressure Range | 0~8BAR (0~116PSI ) | |
| Working Temperature | -40°F~176°F | |
| Storage Temperature | -40°F~185°F | |
| Frequency | 315&433Mhz | |
| Transmission Power | <10dBm | |
| Pressure Accuracy | ±0.1 bar(±1.5 psi) | |
| Temperature Accuracy | ±3°C | |
| Item Dimension | 3" x 1.85" x 1.15" | |
| Item Weight | 26g | 31g |

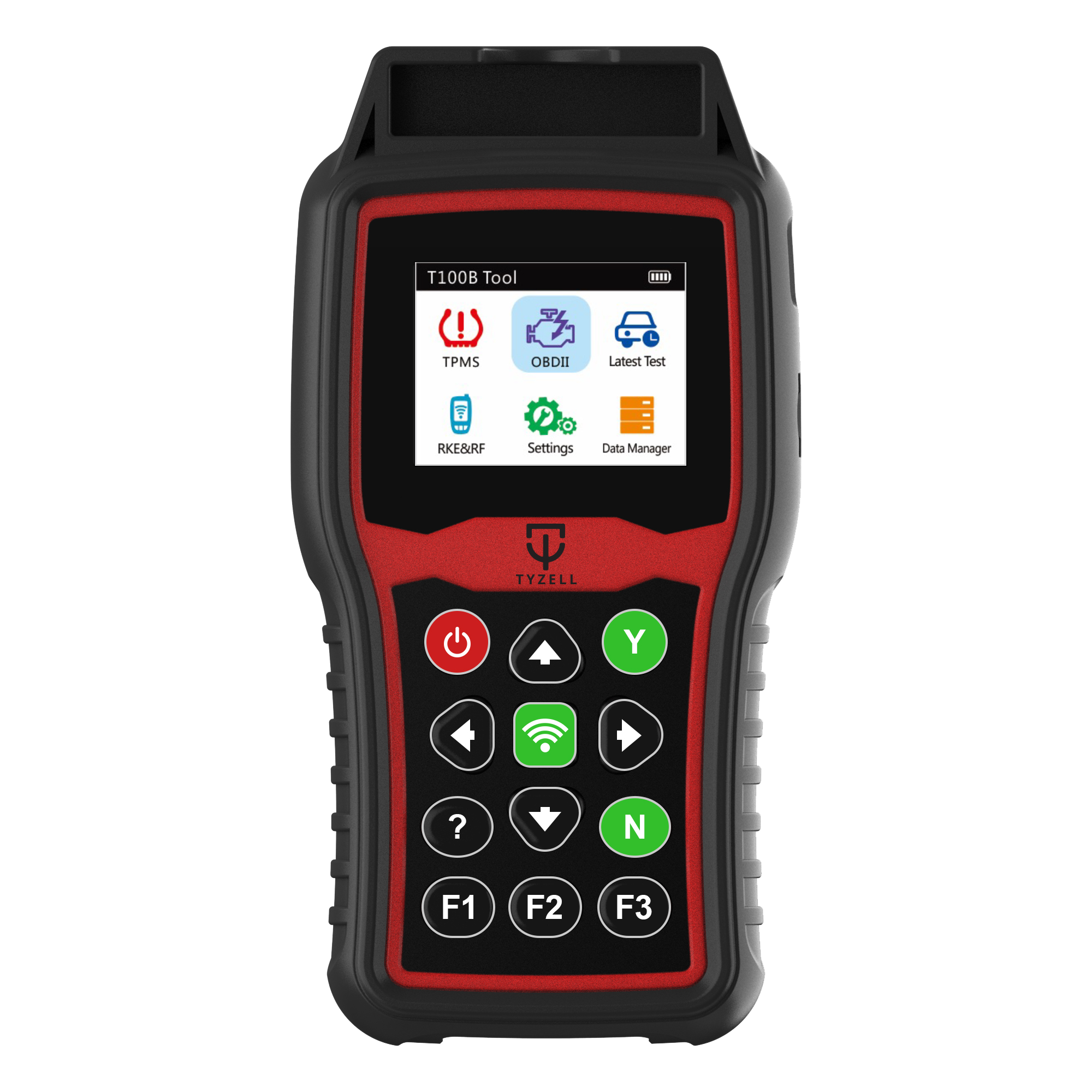

Designed to work seamlessly with the T100B Programmer
| TYZELL MODEL | T100B |
|---|---|
| Display | Backlight, 240*320 TFT |
| Working Temperature | 32°F~140°F |
| Storage Temperature | -4°F~158°F |
| Power Supply | 3.3V USB power |
| Battery | 3.7V/2200mAH Li-polymer |
| Dimensions (LxWxH) | 200 x 100 x 38mm |
| Gross Weight | 1.3kg |
| Radio reception | 315 MHz and 433MHz |

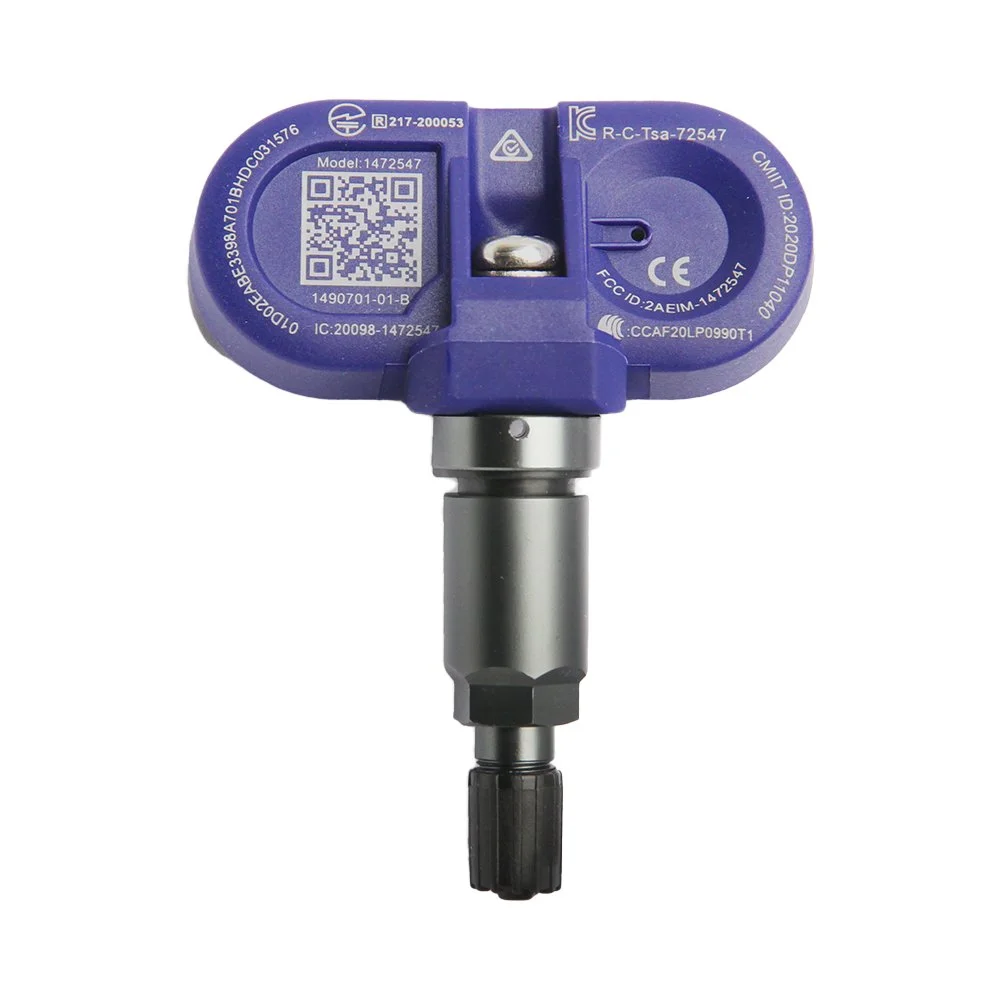

Bluetooth Sensor for Tesla
Metal Grey
| TY03-B | ||
|---|---|---|
| Pressure Range | 0~5.99BAR (0-87PSI ) | |
| Working Temperature | -40°F~176°F | |
| Storage Temperature | -40°F~185°F | |
| Frequency | 2.4GHz | |
| Operation Voltage | <2.2-3.3V | |
| Pressure Accuracy | ±0.1 bar(±1.5 psi) | |
| Temperature Accuracy | ±3°C | |
| Item Dimension | 2.42" x 1.33" x 0.77" | |
| Item Weight | 42g | |
